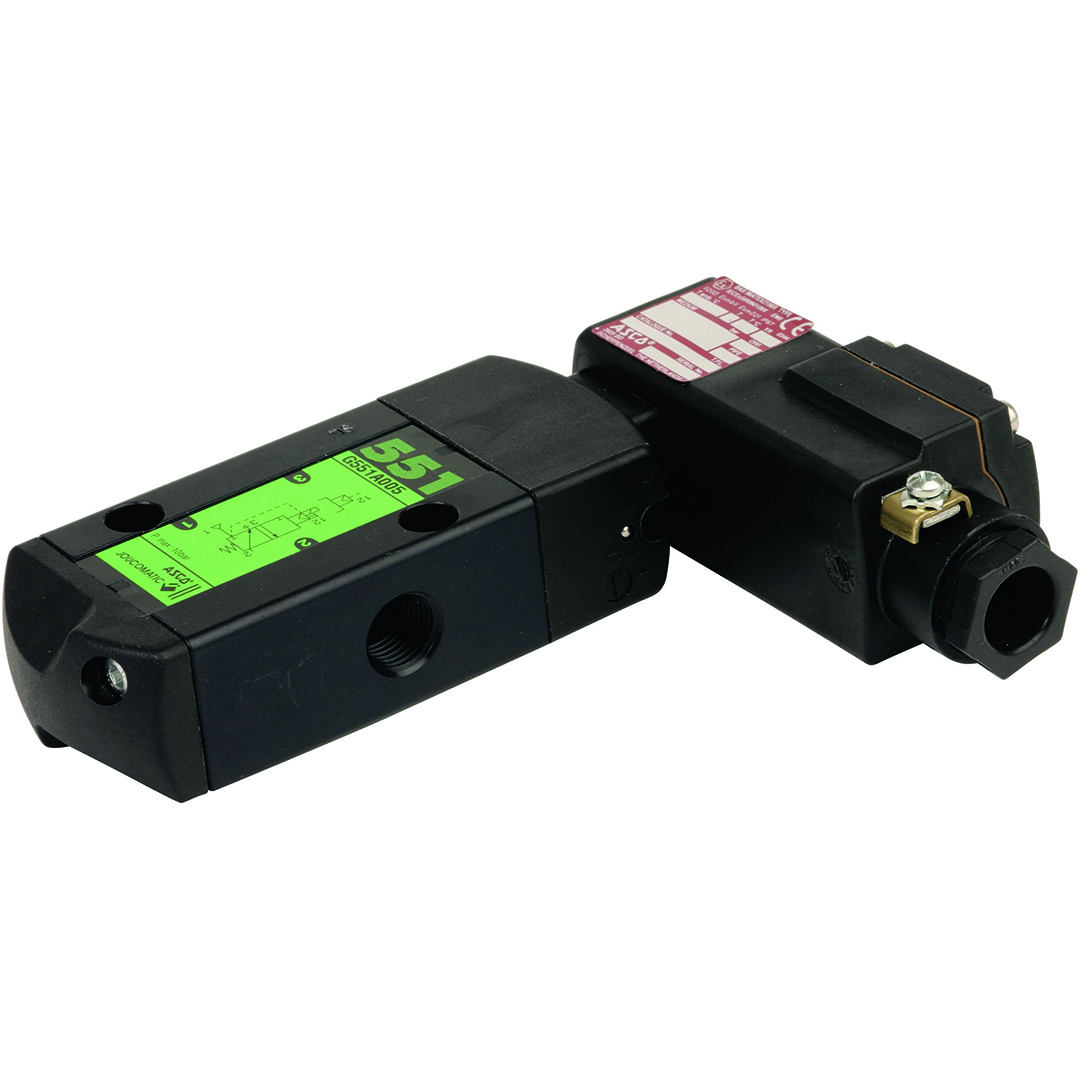

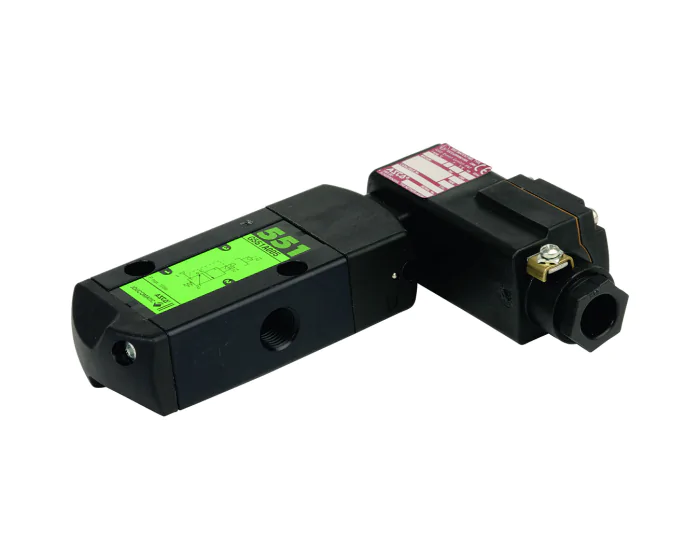

Namur solenoid pilot valve 4281 monostable ASCO 551-WBLP 3/2-5/2 ATEX certified for precise control of pneumatic actuators.
| Specification | Value |
|---|---|
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 2 |
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| Fluid | Air / Neutral gases / Filtered |
| Protection index (IP) | IP 67 |
| Kv (m³/h) | 0.60 |
| Body material | Aluminium |
| ATEX protection mode | Ex mb |
| Pilot (NAMUR) | Asco |
| PS (bar) | 10 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -25 |
| Solenoid pilot valve type | monostable |
| Solenoid pilot valve ways | 3/2 - 5/2 |
| ATEX zone | 1. 2. 21. 22 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 230 V AC | 042810 | S1001579 |
€289.60
(excl. btw)
|
add to cart |
| Aluminium 24 V AC | 042811 | S1001580 |
€289.60
(excl. btw)
|
add to cart |
| Aluminium 24 V DC | 042815 | S1001581 |
€289.60
(excl. btw)
|
add to cart |
